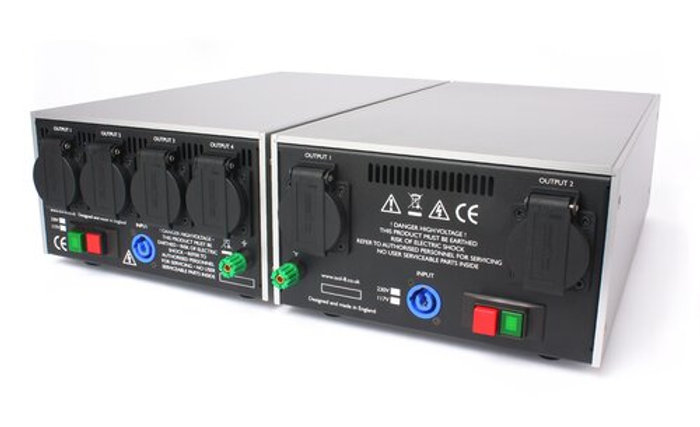

Substation LC

The SubStation LC (Low current) is the foundation of the range, optimising power for your source components. 8 Amps is continuously available across the four outlets. Preceded by a high power DC blocking Axis circuit, each outlet has its own multistage Transmodal filter to suppress cross-contamination between components. The LC is constructed to last a lifetime with carefully auditioned premium components including OFC copper foil inductors. With the SubStation LC at heart of your system it will readily liberate performance lost to compromised mains power. It is our ultimate passive power conditioner for low to medium current loads.

Category:

Description

  • Specifications

    Number of available outlets: 4 on LC
    Type of outlets available: 13A UK, Schuko, 15A US
    Power Input: Neutrik 20A powerCON (cable not supplied)
    Dimensions: W: 232mm
    H: 135mm
    D: 420mm (excluding connectors)
    Weight: 5.8 Kg (LC)
    Construction: Aluminium chassis with Silver finish
    Aluminium alloy panels (Black optional)
    Mains Voltage: 230VAC version for 220-240VAC
    117VAC version for 100-127VAC
    Maximum continuous Current: LC 8 Amps across any one power outlet
    LC 8 Amps across all outlets
    Protection: Rear panel circuit breaker
